Boîte de distribution intérieure pour 100 paires pour module LSA, 320x210x123mm, verrouillage à vis, boîtier en plastique, avec cadre de montage arrière, sans module LSA

TAEPO - Spécialisé dans les boîtes de distribution, Votre partenaire de fabrication chinois professionnel !
Que signifie boîte de distribution ?


    DESCRIPTIONS

What is a Indoor DP Box?
100 pair indoor DP box (TP-1703-100) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.
This 100 pairs dp box can be installed with 10 pairs LSA disconnection module ( you can visit details here  ) which is highly reliable and cost-effective wire connection system for modern telecommunications and data networks. This module adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.


    CARACTÉRISTIQUES PRINCIPALES

• Insulation Displacement Connection
• No wire-stripping, screw and solder free
• Reliable connections
• Clear labeling
• Modular design and installations
• Gas tight connection
• One push wire insertion
• Robust long-term environmental stability
• Wall or pole mountable
• Quick mounting and installation

     SCHÉMAS

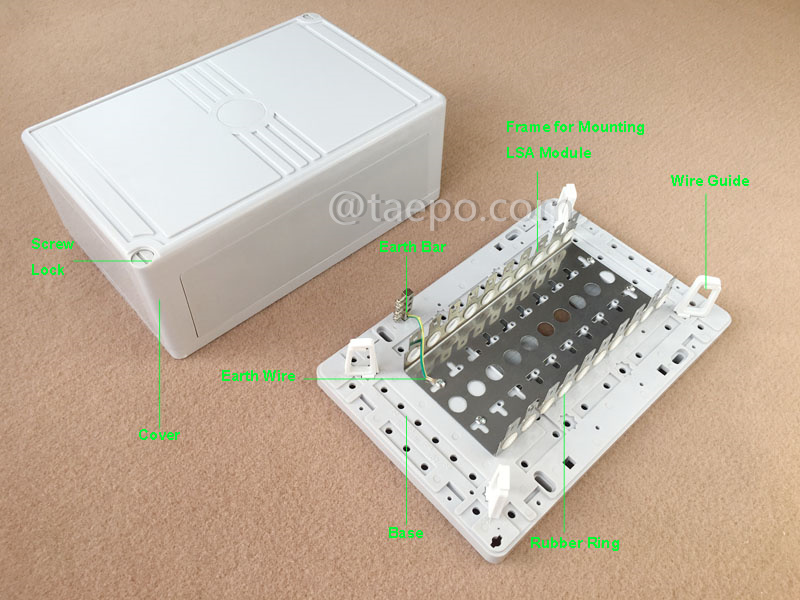

     IMAGES D’ILLUSTRATION

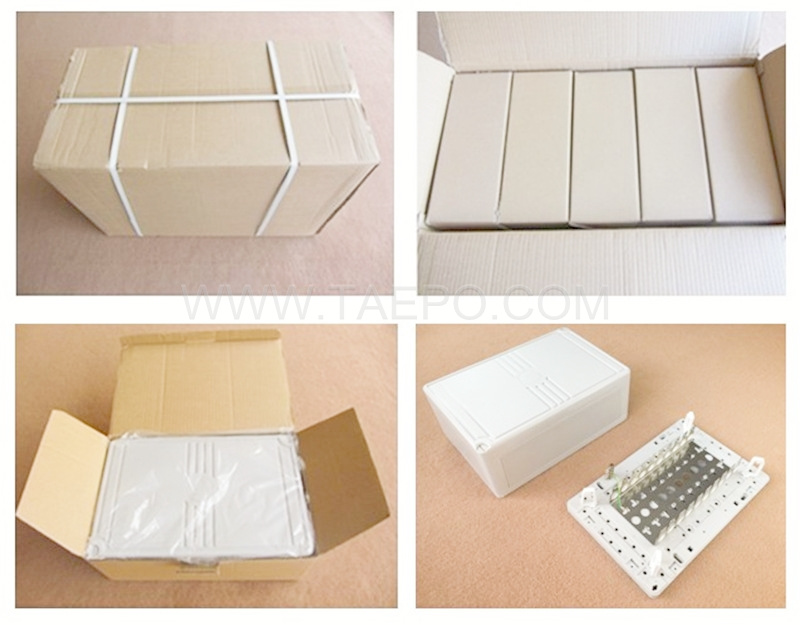

    PHOTOS D’EMBALLAGE

    DONNÉES DE COMMANDE
