Cadre de distribution intermédiaire (IDF) intérieur pour 1400 paires, pour module LSA, type de cadre universel, 1840(H) x 570(L) x 150(P) mm, avec cadre de montage arrière 1400P, anneaux de câbles, sans modules LSA

TAEPO - Spécialisé dans le cadre de distribution intermédiaire (IDF) pour 1400 paires, pour module LSA, votre partenaire de fabrication professionnel chinois !
Que fait le cadre de distribution intermédiaire (IDF) pour le module LSA ?


    DESCRIPTIONS

What is an intermediate distribution frame (IDF)?

Intermediate Distribution Frame / IDF (TP-1810-1400) is a distribution frame in a central office or customer premises, which cross-connects the user cable media to individual user line circuits and may serve as a distribution point for multipair cables from the main distribution frame (MDF) or combined distribution frame (CDF) to individual cables connected to equipment in areas remote from these frames.

IDFs are used for telephone exchange central office, customer-premises equipment, wide area network (WAN), and local area network (LAN) environments, among others.

TAEPO's TP-1810-1400 IDF is either wall mounted or back-to-back for free standing applications, and it is for LSA applications ( You can visit our LSA module here ), which adopts IDC (Insulation Displacement Connection) technique, which means no soldering, wire-stripping or the use of screws, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. Contacts that ensure the highest degree of reliability even under the most adverse environmental and climatic conditions. A completely reliable, gas-tight connection between the contact and conductor.

    CARACTÉRISTIQUES PRINCIPALES

• Insulation Displacement Connection
• No Wire-stripping, screw and solder free
• Reliable connections
• Pre-installed cable clamps and guides for management
• Modular design and installations
• Gas tight connection
• One push wire insertion
• Robust long-term great strength.
• Powder coated, anti corrosion and beautiful appearance.

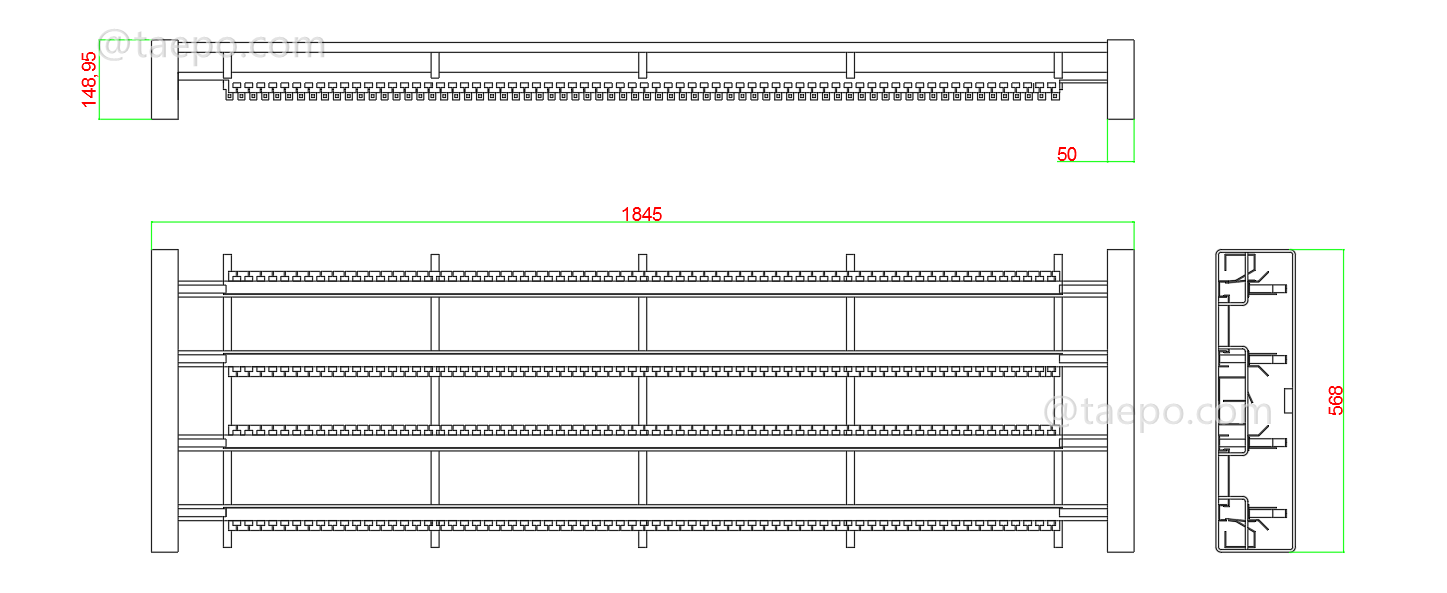

    SCHÉMAS

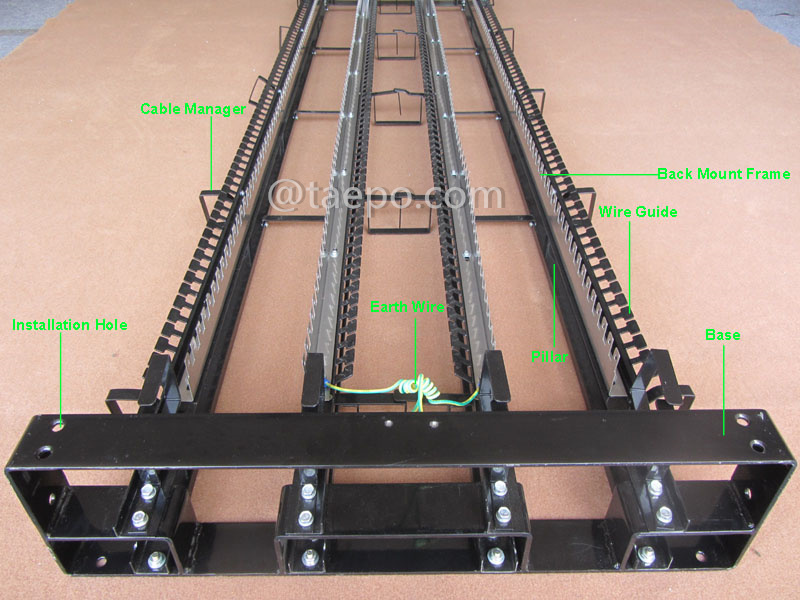

    IMAGES D’ILLUSTRATION

    PHOTOS D’EMBALLAGE

    DONNÉES DE COMMANDE

​​​​​​​
