Outil d'insertion à impact multi-usage IDC pour module STG et module LSA

TAEPO - Votre source professionnelle pour l'outil d'insertion à impact multi-usage IDC pour le module STG et le module LSA, la fabrication chinoise experte à son meilleur.
Que fait l'outil d'insertion à impact multi-usage IDC?


   DESCRIPTIONS

TP-5908 impact insertion tool is available for all applications where a large number of single wires must be distributed or connected.
Advantage: no insulation removal, no use of screws, no soldering, extremely fast working on-site with integrated contact safety.

The Insertion Tool permits the gas-tight connection and trimming of the wire in just one single action. No stripping of wires or use of screws is required - a simple pressing of the tool is sufficient. A correctly terminated contact is indicated by an audible click.

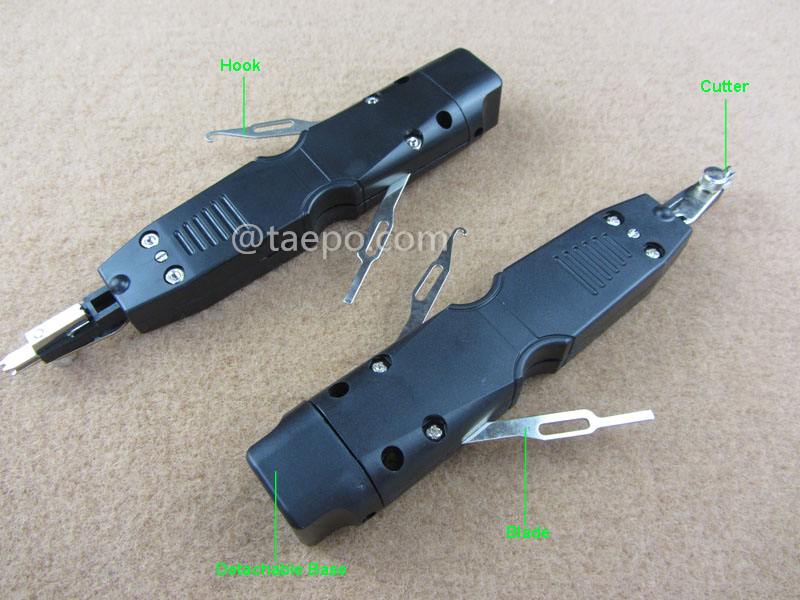

The hook can be used to remove connected wires from the contact or 1-pair MDF protectors from the module. The hook is also designed for removing GDT arresters from the over-voltage protection magazine.

The blade head is used for connecting LSA krone module ( you can visit details here  )  at one side and by changing the oppsite direction of the blade head for connecting STG pouyet module ( you can visit details here  ).

   CARACTÉRISTIQUES PRINCIPALES

• Insulation Displacement Connection (IDC)
• Easy operation
• Long life use
• no insulation removal, no use of screws
• no soldering - extremely fast working on-site with integrated contact safety.

   SCHÉMAS

   IMAGES D’ILLUSTRATION

   PHOTOS D’EMBALLAGE
