Qu'est-ce qu'un outil d'insertion pour bloc terminal ZT ?


    DESCRIPTIONS

TP-5938 is available for all applications where a large number of single wires must be distributed or connected. Advantage: no insulation removal, no use of screws, no soldering, extremely fast working on-site with integrated contact safety.

The Insertion Tool permits the gas-tight connection and trimming of the wire in just one single action. No stripping of wires or use of screws is required, a simple pressing of the tool is sufficient. A correctly terminated contact is indicated by an audible click.

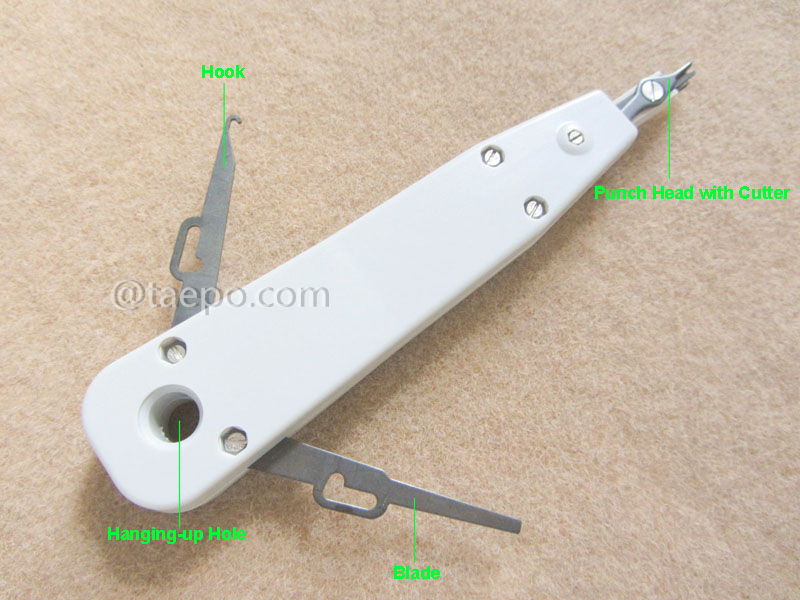

The hook can be used to remove connected wires from the contact.

Th blade is used to release modules from the back-mount frame.

The hole of the tool can be attached to the mounting aid. A handy hook for hanging up the tool when it is not immediately being used.

    CARACTÉRISTIQUES PRINCIPALES

• Insulation Displacement Connection (IDC)
• Easy operation
• Long life use

    SCHÉMAS

    IMAGES D’ILLUSTRATION

    PHOTOS D’EMBALLAGE

    DONNÉES DE COMMANDE
