Boîte de distribution extérieure pour 10 paires pour module STB, 270x145x81mm, verrouillage à vis, boîtier en plastique, avec module STB avec protection contre les surtensions

TAEPO - Votre fabricant professionnel de boîtes de distribution pour module STB en Chine !
À quoi sert une boîte de distribution ?


    DESCRIPTIONS

Distribution STB box / DP box (TP-1712-10LMG) is used in terminating cables of secondary telephone networks to the cable pairs of subscriber lines.

The STB module also called VX connection module  ( you can visit details here  ) provides a connection point between an exchange-side cable pair and a distribution pair. It incorporates a 5-point plug in module to provide continuity and a range of other options.

It is equipped with GDT (Gas Discharge Tube) arrester in side the plug-in module, which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage and over current, for mainly as follows:

• The surge voltage caused by lightning on or around the outside lines.
• The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.
• The outside line directly collides against a 220 V power line.


It is especially recommended for outdoor connections where the environmental conditions are extremely aggressive.

The connection modules are designed for mounting on a standard DIN rail and can therefore be mounted in a variety of housings in whatever quantities are required. The small footprint (2 cm wide) ensures a compact product.


    SCHÉMAS

• Insulation Displacement Connection
• No wire-stripping, screw and solder free
• Reliable connections
• Clear labeling
• Modular design and installations
• Gas tight connection
• One push wire insertion
• Robust long-term environmental stability
• Flexible indoor and outdoor use
• Wall or pole mountable
• Quick mounting and installation

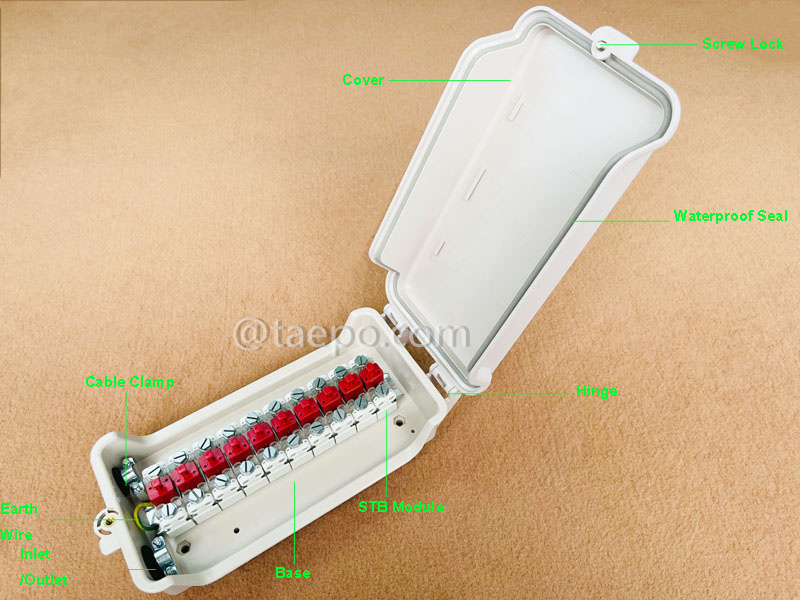

    IMAGES D’ILLUSTRATION

    ILLUSTRATION PICTURES

    PHOTOS D’EMBALLAGE

    DONNÉES DE COMMANDE
